XDCW150308R Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2210125

Kennametal

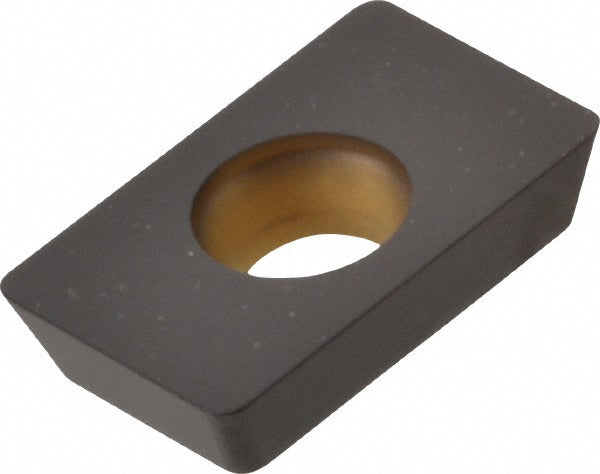

XDCW150308R Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2210125

MFR# 2210125ISO/ANSI# XDCW150308RCat# XDCW150308RSeries XDCW

$41.05List $50.11 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 2210125 is a XDCW150308R solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Coating finishTiN
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle degree88
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size15
Insert size code150308
Insert styleXDCW
Iso codeXDCW150308R
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog numberXDCW150308R
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Relief angle15.00
Single or double sided insertSingle
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in3/8
