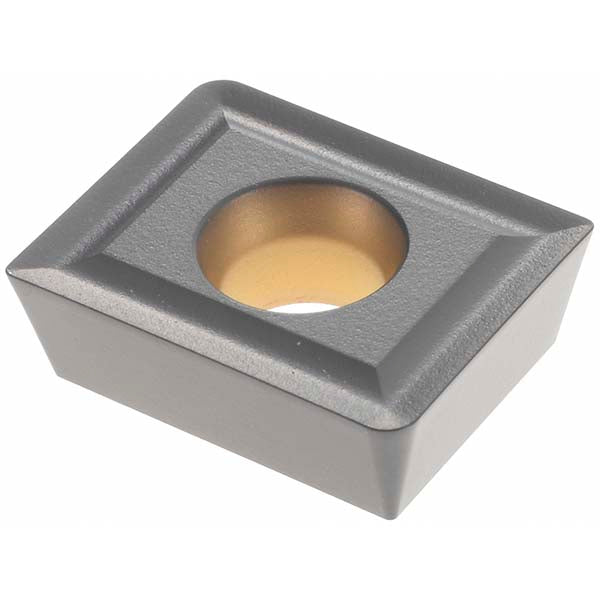

XPMT150412L Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2210127

Kennametal

XPMT150412L Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2210127

MFR# 2210127ISO/ANSI# XPMT150412LCat# XPMT150412LSeries XPMT

$43.12List $52.64 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 2210127 is a XPMT150412L solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Coating finishTiN
Coating processCVD
Corner radius in3/64
Hole diameter0.2165
Included angle degree88
Inscribed circle0.7362
Insert handLeft Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150412
Insert styleXPMT
Iso codeXPMT150412L
Length0.6394
Length range0.6000 to 0.6500
Manufacturers catalog numberXPMT150412L
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Maximum depth of cut0.2950
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Relief angle11.00
Single or double sided insertSingle
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
