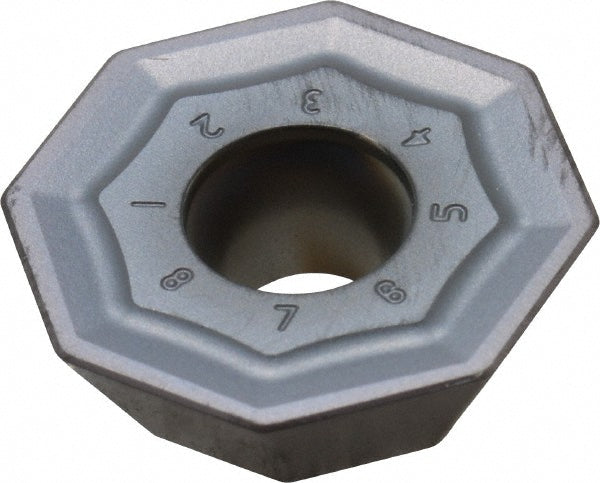

OFKT07L6AFSNHB Solid Carbide Insert, Grade KC522M, TiAlN - Kennametal 2212773

Kennametal

OFKT07L6AFSNHB Solid Carbide Insert, Grade KC522M, TiAlN - Kennametal 2212773

MFR# 2212773ISO/ANSI# OFKT07L6AFSNHBCat# OFKT07L6AFSNHBSeries OFKT

$36.11List $44.08 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeKC522M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 2212773 is a OFKT07L6AFSNHB solid carbide indexable insert, grade KC522M, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeOFKT64AFSN6HB
Chip breakerHB
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityKSOM
Cutting edge styleChamfered; Honed
Hole diameter0.2165
Included angle degree135
Inscribed circle0.7360
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size6
Insert size code64
Insert styleOFKT
Iso codeOFKT07L6AFSNHB
Length0.7360
Length range0.7000 to 0.9000
Manufacturers catalog numberOFKT07L6AFSNHB
Manufacturer gradeKC522M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle25.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2362
Thickness range0.2350 to 0.2500
Width0.7360
