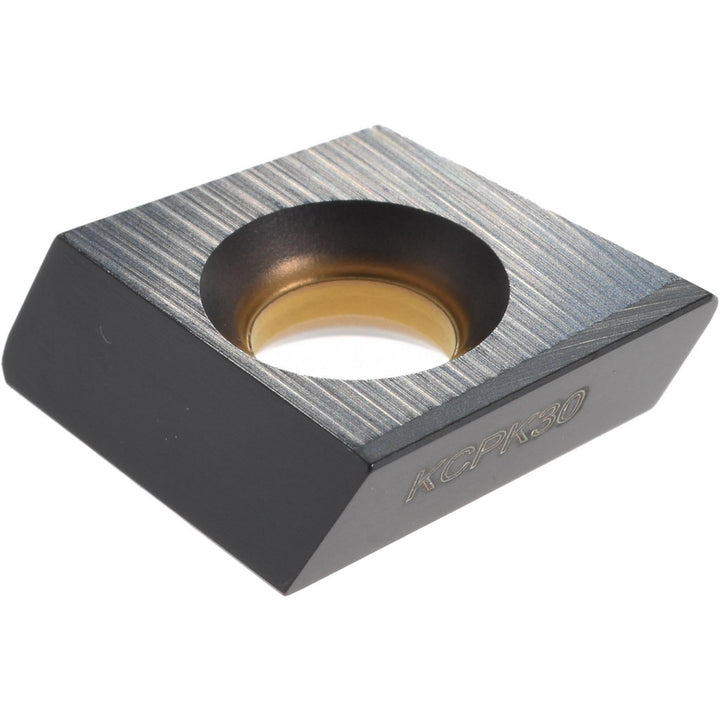

4.21103R614 Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2226808

Kennametal

4.21103R614 Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2226808

MFR# 2226808ISO/ANSI# 4.21103R614Cat# 4.21103R614Series 4.21103

$36.10List $44.07 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 2226808 is a 4.21103R614 solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Coating finishTiN
Coating processCVD
Hole diameter0.1772
Inscribed circle0.5906
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size61
Insert size code614
Insert style4.21103
Iso code4.21103R614
Length0.4134
Length range0.4000 to 0.4500
Manufacturers catalog number4.21103R614
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Single or double sided insertSingle
Thickness0.1580
Thickness range0.1500 to 0.1750
