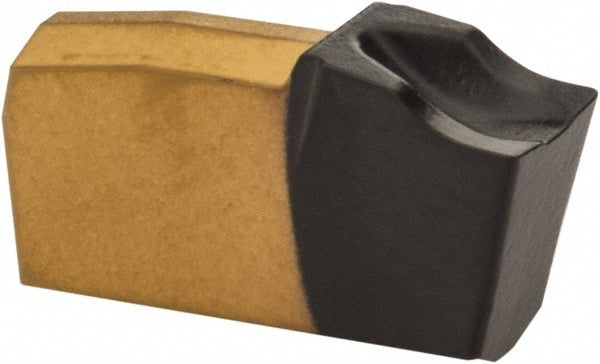

3.90030SNGD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2227129

Kennametal

3.90030SNGD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2227129

MFR# 2227129ISO/ANSI# 3.90030SNGDCat# 3.90030SNGDSeries ODG

$19.82List $24.20 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 2227129 is a 3.90030SNGD solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeODG3125ISGD
Chip breakerGD
Coating finishTiN
Coating processCVD
Corner radius0.0079
Cutter series compatibilityA2
Cutting edge styleChamfered; Honed
Included angle degree135
Inscribed circle0.1201
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeRectangle
Insert size3
Insert size code3125
Insert styleODG
Iso code3.90030SNGD
Length0.4217
Length range0.3200 to 0.4000
Manufacturers catalog number3.90030SNGD
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Maximum depth of cut0.4217
Multi use toolYes
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1831
Thickness range0.1750 to 0.1850
Width0.1201
