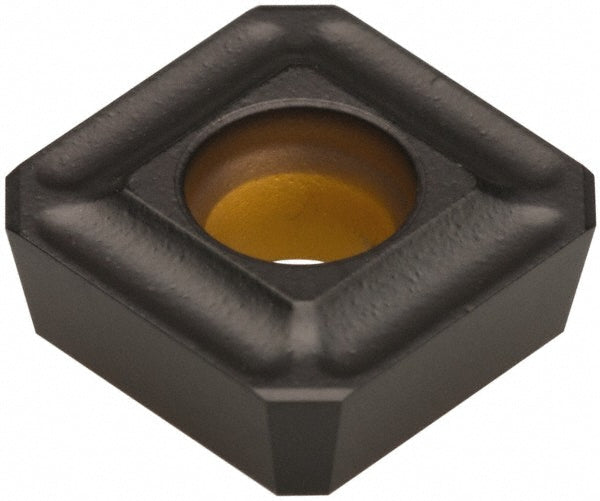

SPGX0903AP Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2227152
MFR# 2227152ISO/ANSI# SPGX0903APCat# SPGX0903APSeries SPGX
$27.57List $33.65
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 2227152 is a SPGX0903AP solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Coating finishTiN
Coating processCVD
Hole diameter0.1339
Included angle degree90
Inscribed circle0.3752
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code0903
Insert styleSPGX
Iso codeSPGX0903AP
Manufacturers catalog numberSPGX0903AP
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Rake angle3
Relief angle11.00
Thickness in1/8
Thickness range0.1250 to 0.1500
