Kennametal

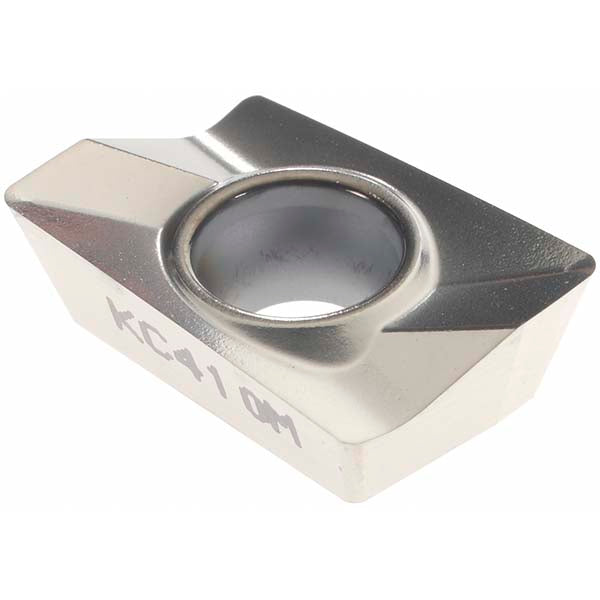

ADCT1545PDFRLDJ Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 2229381
MFR# 2229381ISO/ANSI# ADCT1545PDFRLDJCat# ADCT1545PDFRLDJSeries ADCT
$33.38List $40.74
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC410M
MaterialSolid Carbide
CoatingTiB2
Description
The Kennametal 2229381 is a ADCT1545PDFRLDJ solid carbide indexable insert, grade KC410M, TiB2 coated. Suited for non-ferrous metal.
Specifications
Chip breakerLD
Coating finishTiB2
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle degree85
Inscribed circle0.7362
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size23
Insert size code2328
Insert styleADCT
Iso codeADCT1545PDFRLDJ
Length0.6039
Length range0.6000 to 0.6500
Manufacturers catalog numberADCT1545PDFRLDJ
Manufacturer gradeKC410M
Material applicationNon-Ferrous Metal
Maximum depth of cut0.2950
Primary workpiece materialNon-Ferrous Metal
Rake angle15
Relief angle15.00
Thickness0.1772
Thickness range0.1750 to 0.1850
Width0.3937
