Kennametal

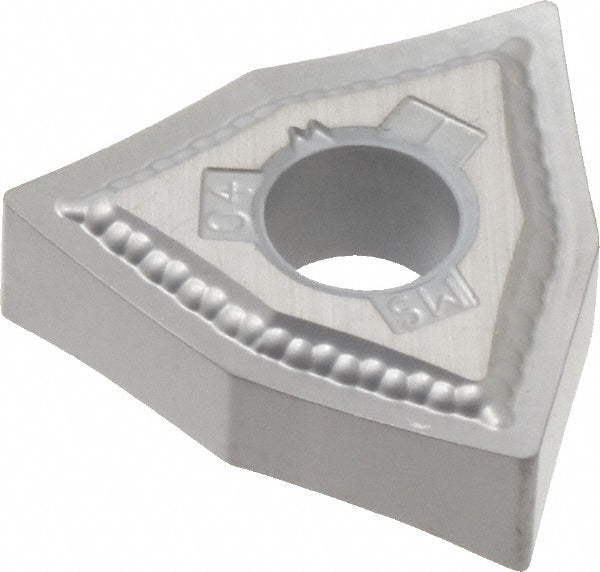

W - Trigon 80-Deg 1/2" IC Carbide Insert, Grade K313 - Kennametal 2244989
MFR# 2244989ISO/ANSI# WNMG080404Series KENLOC
$23.22List $28.34
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeK313
MaterialCarbide
Description
The Kennametal 2244989 is a carbide indexable insert, grade K313. Suited for non-ferrous metal, superalloys & titanium.
Specifications
Ansi insert codeWNMG431
Ansi size code431
Chip breakerMS
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.2031
Included angle80
Industry standard numberWNMG431MS
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso insert codeWNMG080404
Iso size code080404
Length range0.6500 - 0.7000
Manufacturers catalog number2244989
Manufacturer gradeK313
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakeNegative
Rake angle13
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6840
Wiper edgeNo
