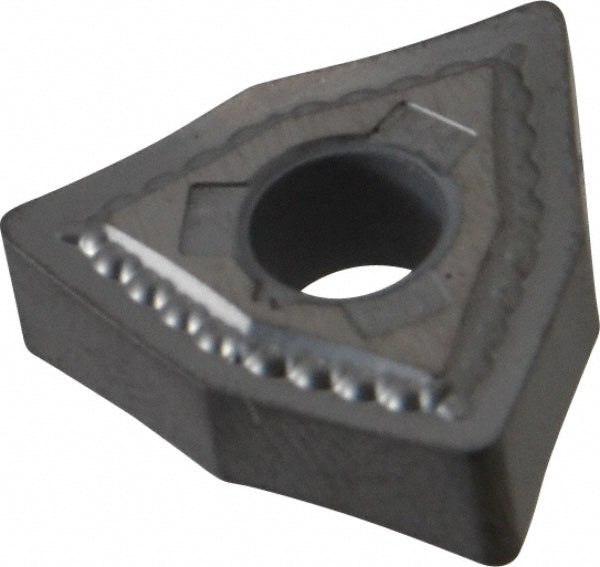

Trigon 1/2" IC Carbide Insert, Grade K313 - Kennametal 2244990

Kennametal

Trigon 1/2" IC Carbide Insert, Grade K313 - Kennametal 2244990

MFR# 2244990ISO/ANSI# WNMG432MSSeries KENLOC

$23.22List $28.34 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
GradeK313
MaterialCarbide

Description

The Kennametal 2244990 is a carbide indexable insert, grade K313. Suited for non-ferrous metal, superalloys & titanium.

Specifications

Chip breakerMS
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle80degree
Industry standard numberWNMG432MS
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Length range0.6500 - 0.7000
Manufacturers catalog number2244990
Manufacturer gradeK313
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakeNegative
Rake angle13
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.6840in
Wiper edgeNo
