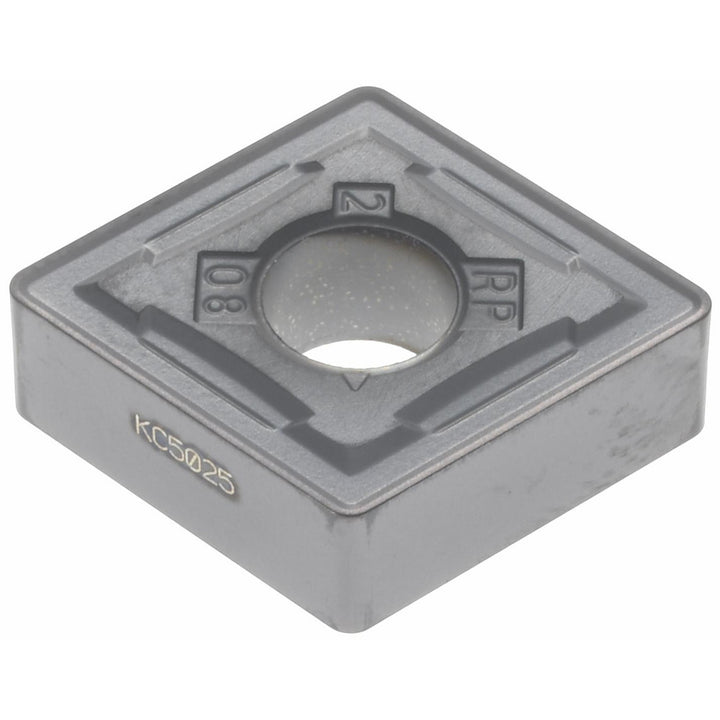

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 2245045

Kennametal

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 2245045

MFR# 2245045ISO/ANSI# CNMG120408Series KENLOC

$25.38List $30.98 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKC5025
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 2245045 is a carbide indexable insert, grade KC5025, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi insert codeCNMG432
Ansi size code432
Chip breakerRP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.2031
Included angle80
Industry standard numberCNMG432RP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso insert codeCNMG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number2245045
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle5
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
