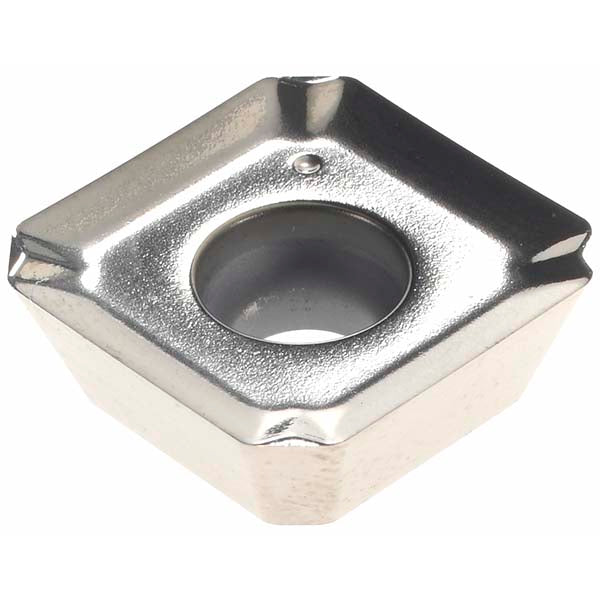

SECT1404AEFNLE Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 2246494

Kennametal

SECT1404AEFNLE Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 2246494

MFR# 2246494ISO/ANSI# SECT1404AEFNLECat# SECT1404AEFNLESeries SECT

$33.44List $40.81 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeKC410M
MaterialSolid Carbide
CoatingTiB2

Description

The Kennametal 2246494 is a SECT1404AEFNLE solid carbide indexable insert, grade KC410M, TiB2 coated. Suited for non-ferrous metal.

Specifications

Ansi codeSECT443AEFN7LE
Chip breakerLE
Coating finishTiB2
Coating processPVD
Corner radius0.0394
Cutter series compatibilityKSSM
Cutting edge styleSharp
Hole diameter0.1732
Included angle degree90
Inscribed circle0.5510
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code443
Insert styleSECT
Iso codeSECT1404AEFNLE
Length0.5510
Length range0.5000 to 0.6000
Manufacturers catalog numberSECT1404AEFNLE
Manufacturer gradeKC410M
Material applicationNon-Ferrous Metal
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle20
Relief angle20.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.5510
