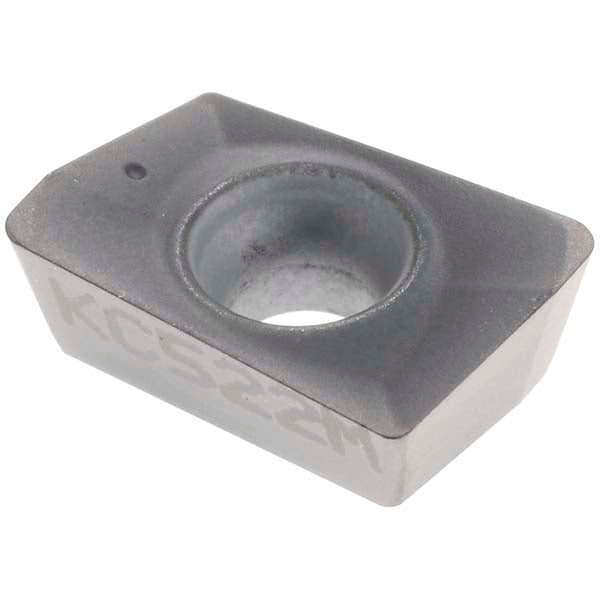

ADKT1035PDERLC Solid Carbide Insert, Grade KC522M, TiAlN - Kennametal 2249529
MFR# 2249529ISO/ANSI# ADKT1035PDERLCCat# ADKT1035PDERLCSeries ADKT
$29.56List $36.08
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC522M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 2249529 is a ADKT1035PDERLC solid carbide indexable insert, grade KC522M, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Chip breakerLC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1142
Included angle degree85
Inscribed circle0.5280
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1622
Insert styleADKT
Iso codeADKT1035PDERLC
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberADKT1035PDERLC
Manufacturer gradeKC522M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeC1
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Rake angle7
Relief angle15.00
Thickness0.1378
Thickness range0.1250 to 0.1500
Width0.2638
