Kennametal
CAT40 Collet Chuck - Kennametal 2249532
MFR# 2249532
$198.34List $248.96
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

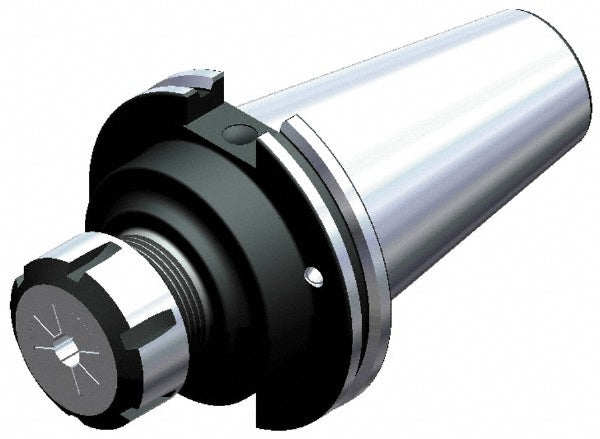

The Kennametal 2249532 is a CAT40 Collet Chuck.
Specifications
Actuator typeWrench
Balanced to rpm12000
Collet nut diameter1.6540
Collet seriesER25
Collet systemER
Coolant typeThrough-Spindle & DIN Flange
Maximum collet capacity0.6299
Minimum collet capacity0.0400
Nose diameter1.6500
Overall length5.187
Projection in2-1/2
Shank typeTaper
Taper sizeCAT40
Through coolantYes
