Kennametal

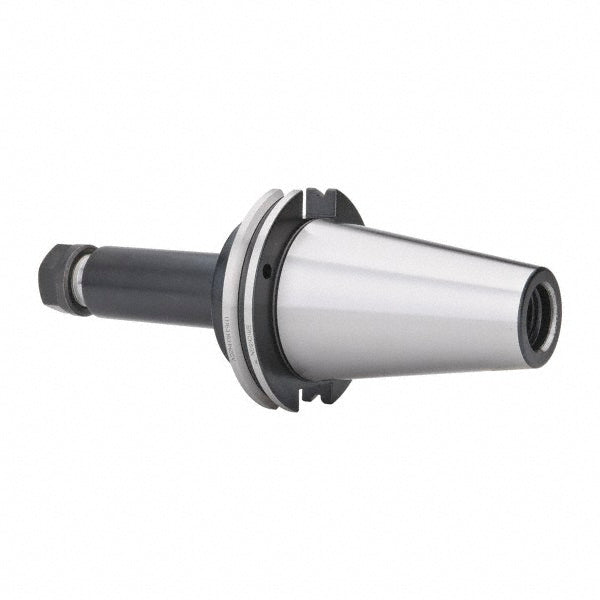

CAT50 Collet Chuck - Kennametal 2249710
MFR# 2249710
$264.02List $331.42
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 2249710 is a CAT50 Collet Chuck.
Specifications
Actuator typeWrench
Balanced to rpm12000
Collet nut diameter1.3400
Collet seriesER20
Collet systemER
Coolant typeThrough-Spindle & DIN Flange
Maximum collet capacity0.5118
Minimum collet capacity0.0200
Nose diameter1.3400
Overall length in10
Projection in6
Shank typeTaper
Taper sizeCAT50
Through coolantYes
