Kennametal

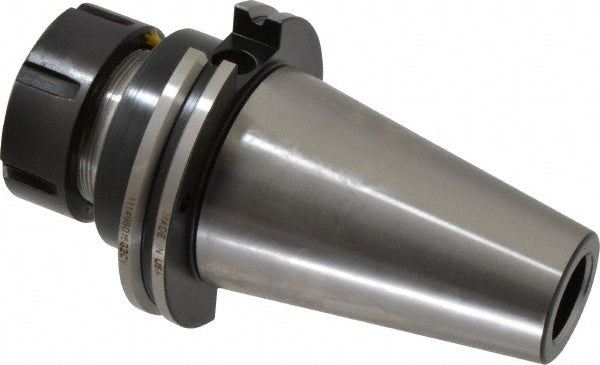

CAT50 Collet Chuck - Kennametal 2249716
MFR# 2249716
$243.06List $305.11
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 2249716 is a CAT50 Collet Chuck.
Specifications
Actuator typeWrench
Balanced to rpm12000
Collet nut diameter2.4800
Collet seriesER40
Collet systemER
Coolant typeThrough-Spindle & DIN Flange
Maximum collet capacity1.0236
Minimum collet capacity0.1200
Nose diameter2.4800
Overall length in7
Projection in3
Shank typeTaper
Taper sizeCAT50
Through coolantYes
