Kennametal

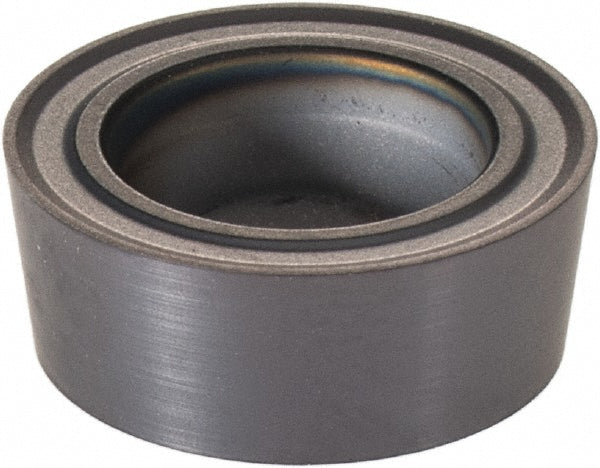

R - Round 1/2" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 2263578
MFR# 2263578ISO/ANSI# RCGH120400Series KENDEX
$33.59List $41.01
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeR - Round
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 2263578 is a carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeRCGH43
Ansi size code43
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/4
Cutting edge styleHoned
Full radiusYes
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.2165
Included angle360
Industry standard numberRCGH43
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length in1/2
Insert materialCarbide
Insert shapeR - Round
Insert size code43
Insert styleRCGH
Insert thickness in3/16
Iso insert codeRCGH120400
Iso size code120400
Length range0.5000 - 0.6000
Manufacturers catalog number2263578
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
