Kennametal

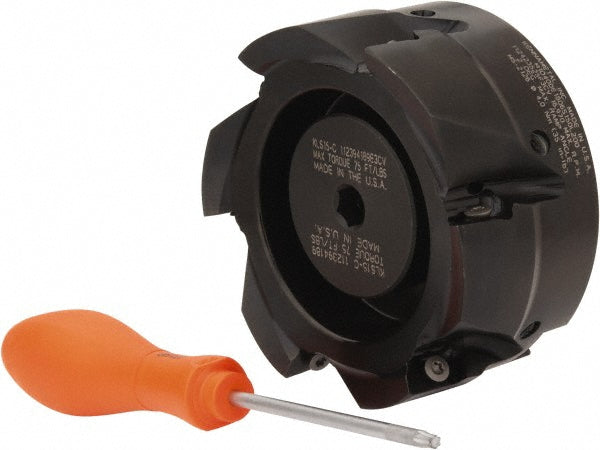

Indexable Milling Cutters - Kennametal 2267617
MFR# 2267617Series Mill 1-18
$903.64List $1,103.01
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Kennametal 2267617 indexable milling cutters. Series Mill 1-18.
Specifications
Arbor hole diameter in1-1/2
Compatible insert size codeEC18..; EP18..
Coolant hole diameter3.0000
Coolant throughYes
Cutting directionRight Hand
Hub diameter3.6252
Insert holding methodScrew
Keyway width0.6441
Lead angle0/90
Maximum body diameter3.8940
Maximum cutting diameter in4
Maximum depth of cut0.7100
Number of cutter inserts6
Number of flutes6
Overall height in2
