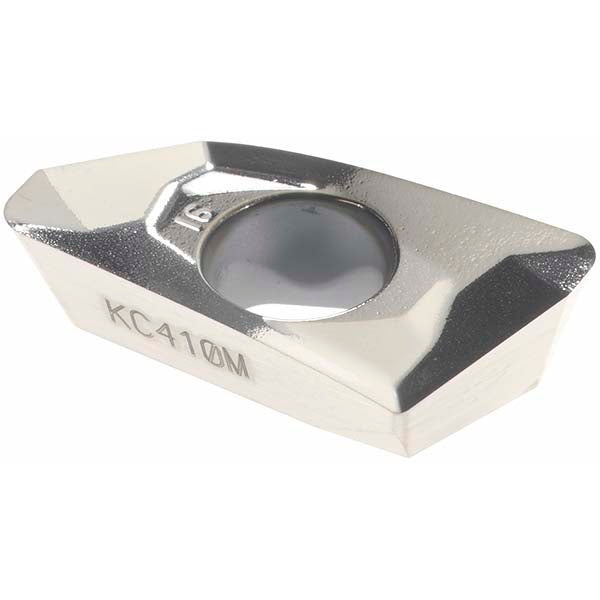

EDCT180516PDFRLDJ Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 2271090

Kennametal

EDCT180516PDFRLDJ Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 2271090

MFR# 2271090ISO/ANSI# EDCT180516PDFRLDJCat# EDCT180516PDFRLDJSeries EDCT

$32.33List $39.46 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeKC410M
MaterialSolid Carbide
CoatingTiB2

Description

The Kennametal 2271090 is a EDCT180516PDFRLDJ solid carbide indexable insert, grade KC410M, TiB2 coated. Suited for non-ferrous metal.

Specifications

Ansi codeEC1816FJ
Chip breakerLD
Coating finishTiB2
Coating processPVD
Corner radius in1/16
Cutter series compatibilityMill 1-18
Cutting edge styleSharp
Included angle degree70
Inscribed circle0.4314
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1816
Insert styleEDCT
Iso codeEDCT180516PDFRLDJ
Length0.8575
Length range0.7000 to 0.9000
Manufacturers catalog numberEDCT180516PDFRLDJ
Manufacturer gradeKC410M
Material applicationNon-Ferrous Metal
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2170
Thickness range0.2000 to 0.2200
Width0.4310
