Kennametal

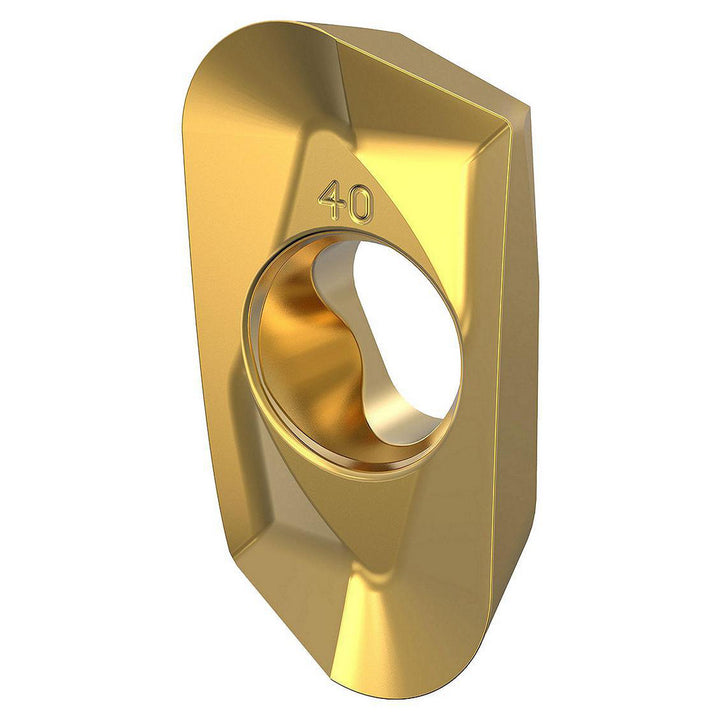

EDCT180532PDERLD Solid Carbide Insert, Grade KC522M, TiAlN - Kennametal 2271094
MFR# 2271094ISO/ANSI# EDCT180532PDERLDCat# EDCT180532PDERLDSeries EDCT
$30.58List $37.32
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC522M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 2271094 is a EDCT180532PDERLD solid carbide indexable insert, grade KC522M, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeEC1832E
Chip breakerLD
Coating finishTiAlN
Coating processPVD
Corner radius in1/8
Cutter series compatibilityMill 1-18
Cutting edge styleHoned
Included angle degree70
Inscribed circle0.4295
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1832
Insert styleEDCT
Iso codeEDCT180532PDERLD
Length0.8579
Length range0.7000 to 0.9000
Manufacturers catalog numberEDCT180532PDERLD
Manufacturer gradeKC522M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2170
Thickness range0.2000 to 0.2200
Width0.4300
