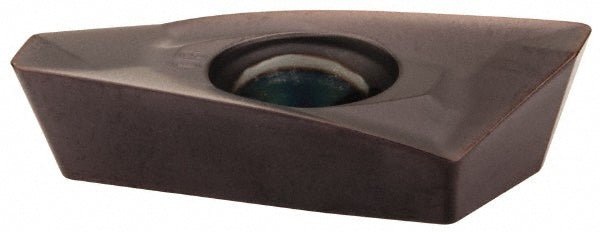

EDPT180508PDERGD Solid Carbide Insert, Grade KC520M, TiAlN - Kennametal 2271122
MFR# 2271122ISO/ANSI# EDPT180508PDERGDCat# EDPT180508PDERGDSeries EDPT
$30.31List $36.99
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC520M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 2271122 is a EDPT180508PDERGD solid carbide indexable insert, grade KC520M, TiAlN coated. Suited for cast iron.
Specifications
Ansi codeEP1808E
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 1-18
Cutting edge styleHoned
Included angle degree70
Inscribed circle0.4320
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1808
Insert styleEDPT
Iso codeEDPT180508PDERGD
Length0.8570
Length range0.7000 to 0.9000
Manufacturers catalog numberEDPT180508PDERGD
Manufacturer gradeKC520M
Material applicationCast Iron
Material gradeC1; C2
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2170
Thickness range0.2000 to 0.2200
Width0.4320
