Kennametal

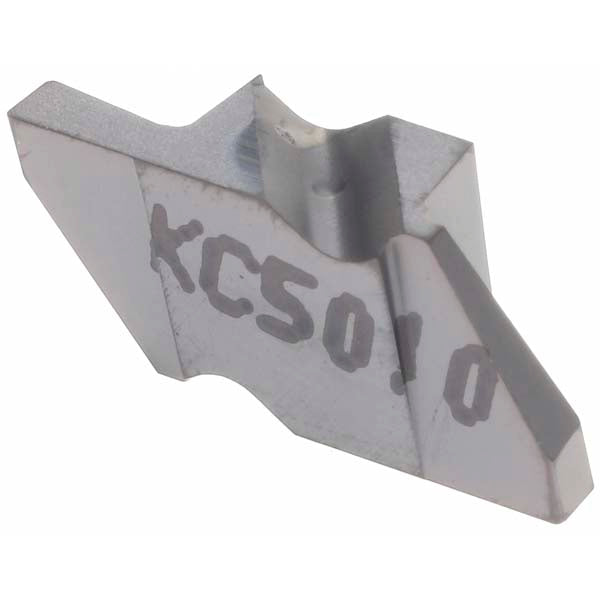

Carbide Insert, Grade KC5010, TiAlN - Kennametal 2274469
MFR# 2274469Series Top Notch
$34.37List $41.96
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 2274469 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting width0.0622
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert height0.2190
Insert materialCarbide
Insert size2062
Insert styleNG
Lead angle3
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.1098
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Msc manufacturer numberNG2062R/L
Multi use toolNo
RakeNeutral
