Kennametal
Carbide Insert, Grade KC5025, TiAlN - Kennametal 2275076
MFR# 2275076Cat# A4R125I03P00GMNSeries A4
$36.98List $45.14
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description

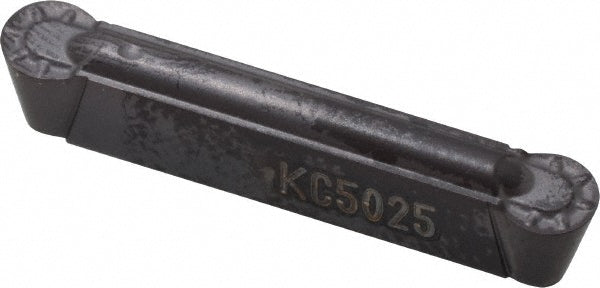

The Kennametal 2275076 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Chip breakerGMN
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutting width0.1252
Full radiusYes
Insert handNeutral
Insert materialCarbide
Insert size125
Insert styleR
Manufacturers catalog numberA4R125I03P00GMN
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.1063
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolYes
Overall length0.7874
