Kennametal

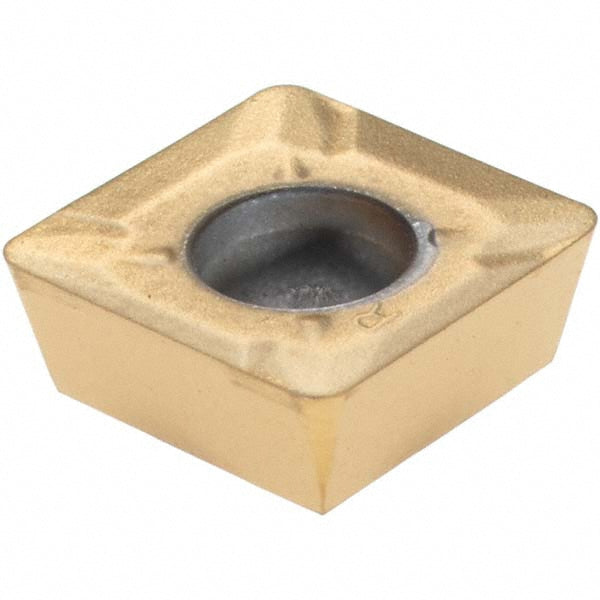

SDCT120412PDERLD2 Solid Carbide Insert, Grade KC725M, TiN - Kennametal 2383558
MFR# 2383558ISO/ANSI# SDCT120412PDERLD2Cat# SDCT120412PDERLD2Series SDCT
$30.16List $36.81
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 2383558 is a SDCT120412PDERLD2 solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerLD2
Coating finishTiN
Coating processPVD
Corner radius in3/64
Hole diameter0.1732
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size43
Insert size code433
Insert styleSDCT
Iso codeSDCT120412PDERLD2
Manufacturers catalog numberSDCT120412PDERLD2
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Relief angle15.00
Thickness in3/16
Thickness range0.1850 to 0.2000
