Kennametal

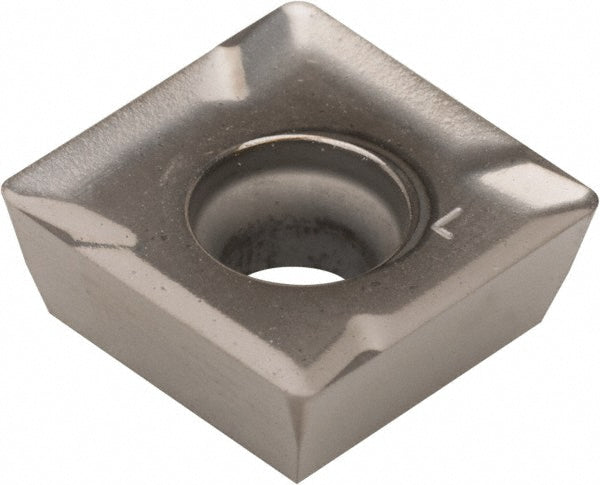

SDCT1204PDFLLE Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 2383594
MFR# 2383594ISO/ANSI# SDCT1204PDFLLECat# SDCT1204PDFLLESeries SDCT
$31.66List $38.65
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC410M
MaterialSolid Carbide
CoatingTiB2
Description
The Kennametal 2383594 is a SDCT1204PDFLLE solid carbide indexable insert, grade KC410M, TiB2 coated. Suited for non-ferrous metal.
Specifications
Chip breakerLE
Coating finishTiB2
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handLeft Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size43
Insert size code43
Insert styleSDCT
Iso codeSDCT1204PDFLLE
Manufacturers catalog numberSDCT1204PDFLLE
Manufacturer gradeKC410M
Material applicationNon-Ferrous Metal
Primary workpiece materialNon-Ferrous Metal
Rake angle20
Relief angle15.00
Thickness in3/16
Thickness range0.1850 to 0.2000
