Kennametal

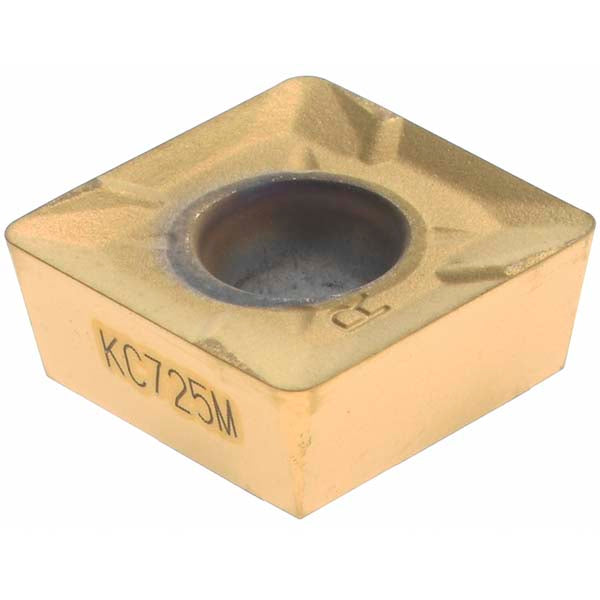

SPCT10T3PPERLD2 Solid Carbide Insert, Grade KC725M, TiN - Kennametal 2390254
MFR# 2390254ISO/ANSI# SPCT10T3PPERLD2Cat# SPCT10T3PPERLD2Series SPCT
$23.38List $28.54
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 2390254 is a SPCT10T3PPERLD2 solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerLD2
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1339
Included angle degree90
Inscribed circle0.5512
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size31
Insert size code3125
Insert styleSPCT
Iso codeSPCT10T3PPERLD2
Manufacturers catalog numberSPCT10T3PPERLD2
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Maximum depth of cut0.5510
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Relief angle11.00
Thickness in5/32
Thickness range0.1500 to 0.1750
