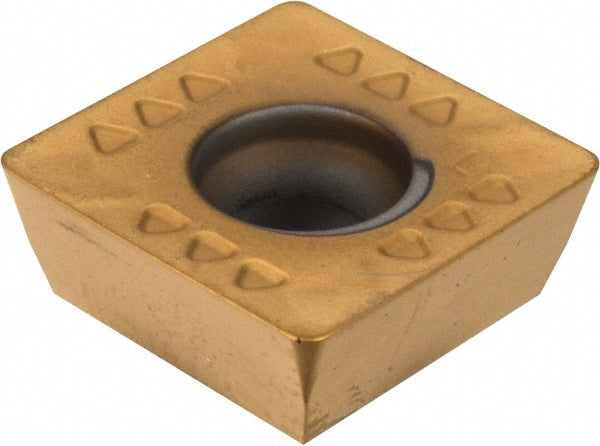

SDET1204PDELGB2 Solid Carbide Insert, Grade KC725M, TiN - Kennametal 2390284
MFR# 2390284ISO/ANSI# SDET1204PDELGB2Cat# SDET1204PDELGB2Series SDET
$30.16List $36.81
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 2390284 is a SDET1204PDELGB2 solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerGB2
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handLeft Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size43
Insert size code43
Insert styleSDET
Iso codeSDET1204PDELGB2
Manufacturers catalog numberSDET1204PDELGB2
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Relief angle15.00
Thickness in3/16
Thickness range0.1850 to 0.2000
