Kennametal

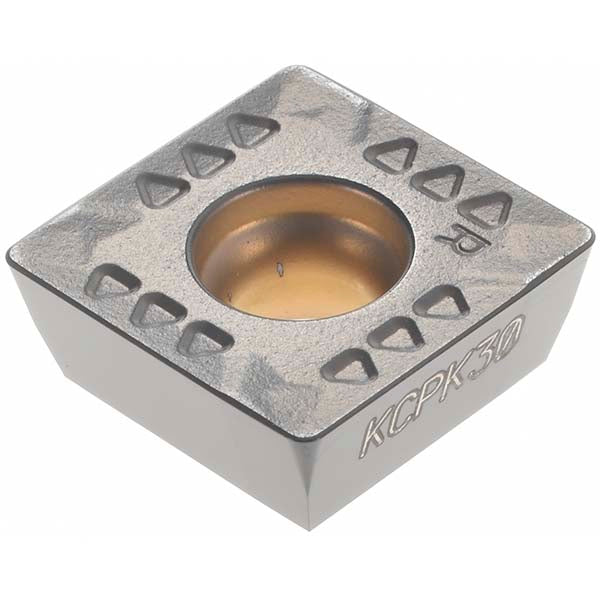

SDET1204PDSRGB2 Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2390291
MFR# 2390291ISO/ANSI# SDET1204PDSRGB2Cat# SDET1204PDSRGB2Series SDET
$31.38List $38.31
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 2390291 is a SDET1204PDSRGB2 solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Chip breakerGB2
Coating finishTiN
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size43
Insert size code43
Insert styleSDET
Iso codeSDET1204PDSRGB2
Manufacturers catalog numberSDET1204PDSRGB2
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Relief angle15.00
Thickness in3/16
Thickness range0.1850 to 0.2000
