Kennametal

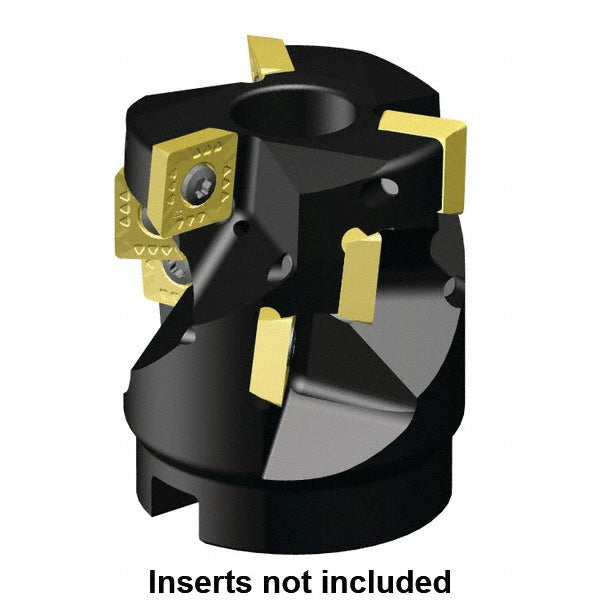

Indexable Milling Cutters - Kennametal 2400680
MFR# 2400680Series KSSP
$1,136.95List $1,387.80
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Kennametal 2400680 indexable milling cutters. Series KSSP.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeSD.T 43..
Coolant throughYes
Cutting directionRight Hand
Hub diameter in1-3/4
Insert holding methodScrew
Keyway width0.3311
Lead angle0/90
Maximum body diameter1.9050
Maximum cutting diameter in2
Maximum depth of cut1.6910
Number of cutter inserts12
Number of flutes3
Overall height2.2500
