Kennametal

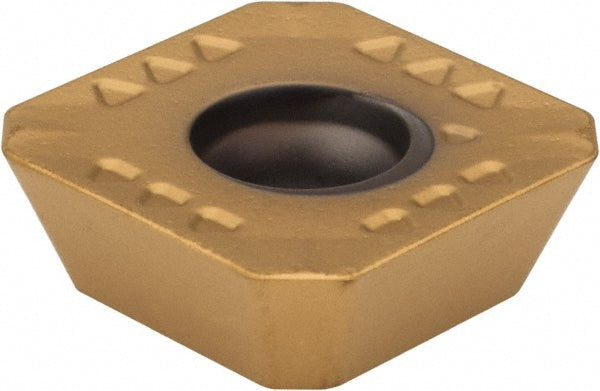

SEPT1404AESNGB2 Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 2405375
MFR# 2405375ISO/ANSI# SEPT1404AESNGB2Cat# SEPT1404AESNGB2Series SEPT
$27.96List $34.12
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 2405375 is a SEPT1404AESNGB2 solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeSEPT443AESN7GB2
Chip breakerGB2
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityKSSM
Cutting edge styleChamfered; Honed
Hole diameter0.1732
Included angle degree90
Inscribed circle0.5512
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code443
Insert styleSEPT
Iso codeSEPT1404AESNGB2
Length0.5512
Length range0.5000 to 0.6000
Manufacturers catalog numberSEPT1404AESNGB2
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Maximum depth of cut0.5512
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle20.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.5512
