Kennametal

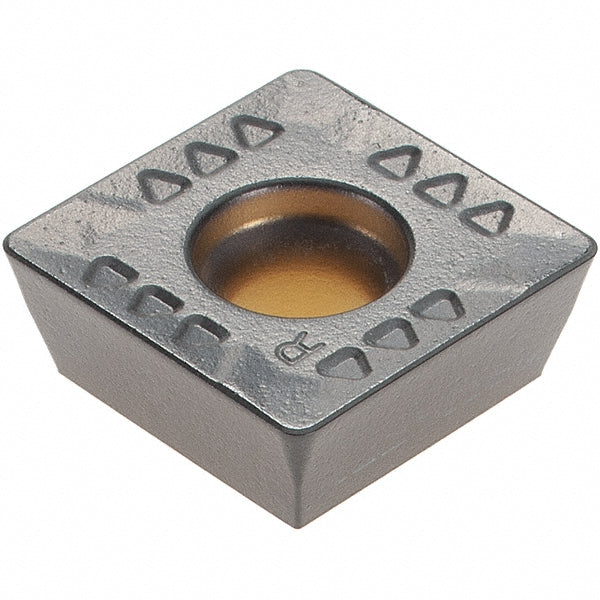

SDPT1204PDSRGB2 Solid Carbide Insert, Grade KCK15, TiN - Kennametal 2405388
MFR# 2405388ISO/ANSI# SDPT1204PDSRGB2Cat# SDPT1204PDSRGB2Series SDPT
$26.37List $32.20
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKCK15
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 2405388 is a SDPT1204PDSRGB2 solid carbide indexable insert, grade KCK15, TiN coated. Suited for cast iron.
Specifications
Chip breakerGB2
Coating finishTiN
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size43
Insert size code43
Insert styleSDPT
Iso codeSDPT1204PDSRGB2
Manufacturers catalog numberSDPT1204PDSRGB2
Manufacturer gradeKCK15
Material applicationCast Iron
Material gradeC1
Primary workpiece materialCast Iron
Relief angle15.00
Thickness in3/16
Thickness range0.1850 to 0.2000
