Kennametal

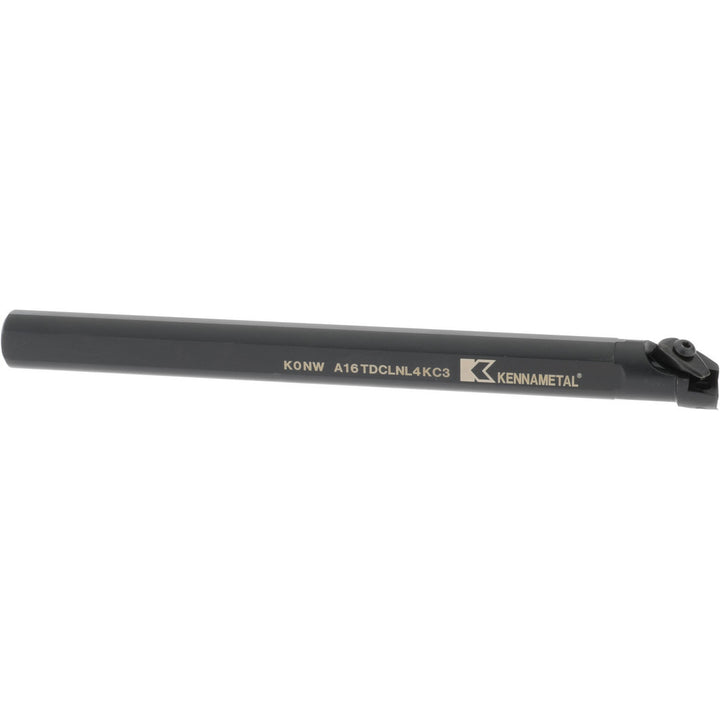

Indexable Boring - Kennametal 2408507
MFR# 2408507Series Kenclamp
$447.73List $546.51
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 2408507 indexable boring. Series Kenclamp.
Specifications
Back of bar to cutting edge (mm)16.26
Center to cutting edge0.6400
Coolant hole thread size in1/4-18 NPT
Coolant throughYes
Hand of holderLeft Hand
Insert compatibilityCN..
Insert holding methodClamp
Insert inscribed circle in1/2
Insert thickness in3/16
Lead angle-5
Minimum bore diameter1.2000
Multi use toolNo
Overall length in12
RakeNegative
Rake angle5.00
Shank diameter in1
Toolholder styleA-DCLN-KC
Tool materialSteel
