Kennametal

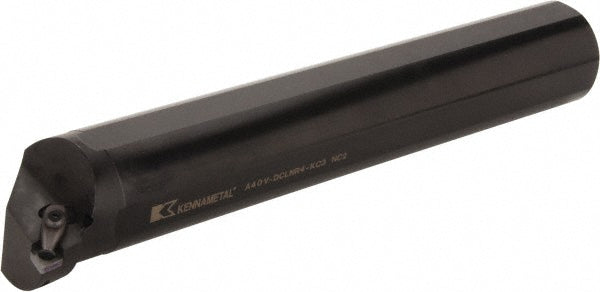

Indexable Boring - Kennametal 2408526
MFR# 2408526Series Kenclamp
$653.66List $797.88
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 2408526 indexable boring. Series Kenclamp.
Specifications
Center to cutting edge1.5310
Coolant hole thread size in1/4-18 NPT
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityCN..
Insert holding methodClamp
Insert inscribed circle in1/2
Insert thickness in3/16
Lead angle-5
Minimum bore diameter3.0300
Multi use toolNo
Overall length in16
RakeNegative
Rake angle5.00
Shank diameter in2-1/2
Toolholder styleA-DCLN-KC
Tool materialSteel
