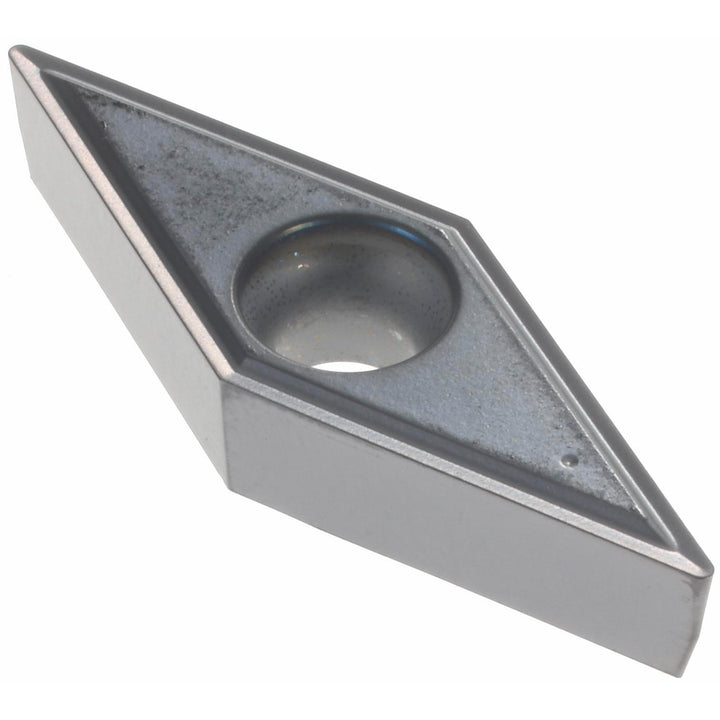

V - Diamond (Rhombic) 35-Deg 3/8" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 2425847

Kennametal

V - Diamond (Rhombic) 35-Deg 3/8" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 2425847

MFR# 2425847ISO/ANSI# VBMT160404Series Screw-On

$36.23List $44.22 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKC5025
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 2425847 is a carbide indexable insert, grade KC5025, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi insert codeVBMT331
Ansi size code331
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.1732
Included angle35
Industry standard numberVBMT331LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3076
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso insert codeVBMT160404
Iso size code160404
Length range0.7000 - 10.0000
Manufacturers catalog number2425847
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
