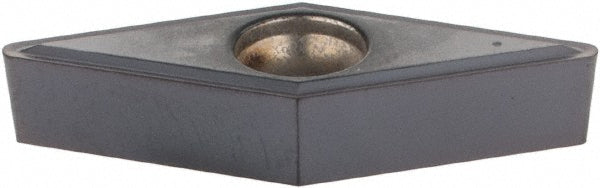

Diamond 35 3/8" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 2425848

Kennametal

Diamond 35 3/8" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 2425848

MFR# 2425848ISO/ANSI# VBMT332LFSeries Screw-On

$36.23List $44.22 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeKC5025
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 2425848 is a carbide indexable insert, grade KC5025, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerLF
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle35degree
Industry standard numberVBMT332LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3076
Insert materialCarbide
Insert shapeDiamond 35
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Length range0.7000 - 10.0000
Manufacturers catalog number2425848
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle5
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
