Kennametal
Carbide Insert, Grade KC5025, TiAlN - Kennametal 2438408
MFR# 2438408Series Top Notch
$35.79List $43.68
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description

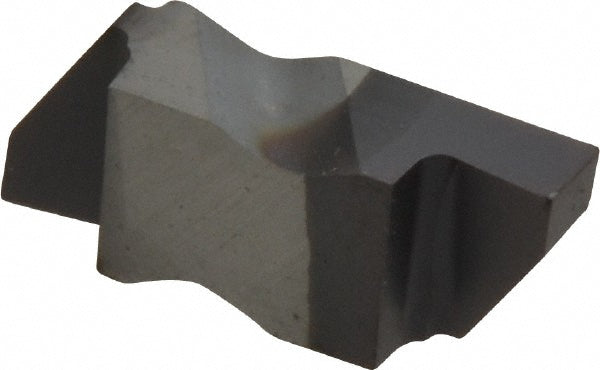

The Kennametal 2438408 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting width0.1252
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert height0.3440
Insert materialCarbide
Insert size3125
Insert styleNG
Lead angle3
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Msc manufacturer numberNG3125R/L
Multi use toolNo
RakeNeutral
