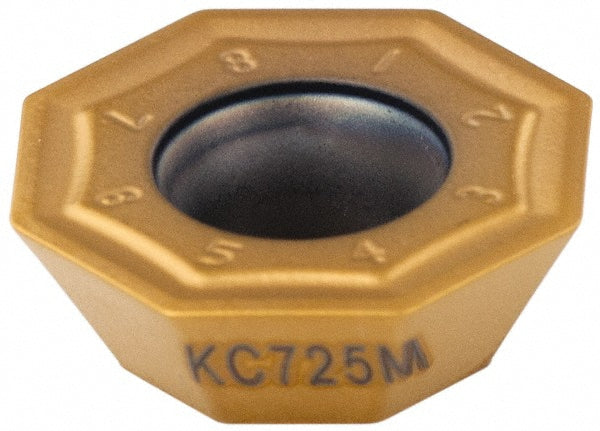

OFPT06L5AFENGB Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 2453684

Kennametal

OFPT06L5AFENGB Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 2453684

MFR# 2453684ISO/ANSI# OFPT06L5AFENGBCat# OFPT06L5AFENGBSeries OFPT

$25.35List $30.94 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 2453684 is a OFPT06L5AFENGB solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeOFPT53AFEN4GB
Chip breakerGB
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityKSOM
Cutting edge styleHoned
Hole diameter0.2165
Included angle degree135
Inscribed circle0.5787
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size5
Insert size code53
Insert styleOFPT
Iso codeOFPT06L5AFENGB
Length0.5787
Length range0.5000 to 0.6000
Manufacturers catalog numberOFPT06L5AFENGB
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Maximum depth of cut0.2360
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle25.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1969
Thickness range0.1850 to 0.2000
Width0.5787
