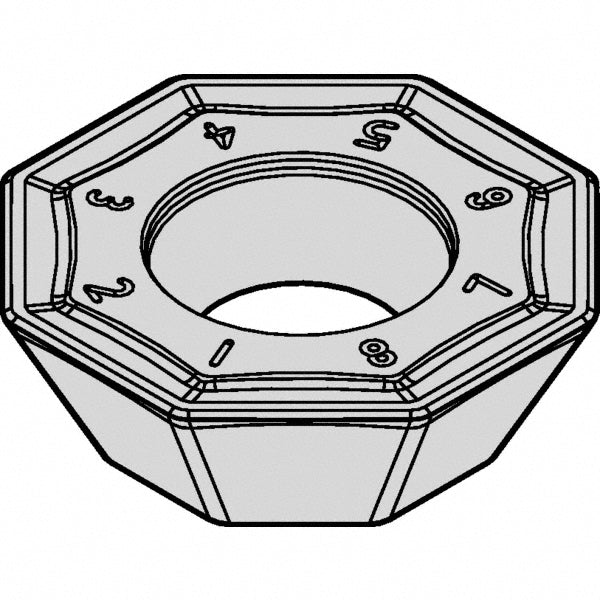

OFPT06L5AFSNHB Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2455818

Kennametal

OFPT06L5AFSNHB Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2455818

MFR# 2455818ISO/ANSI# OFPT06L5AFSNHBCat# OFPT06L5AFSNHBSeries OFPT

$25.61List $31.25 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 2455818 is a OFPT06L5AFSNHB solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeOFPT53AFSN4HB
Chip breakerHB
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityKSOM
Cutting edge styleChamfered; Honed
Hole diameter0.2165
Included angle degree135
Inscribed circle0.5787
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size5
Insert size code53
Insert styleOFPT
Iso codeOFPT06L5AFSNHB
Length0.5787
Length range0.5000 to 0.6000
Manufacturers catalog numberOFPT06L5AFSNHB
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Maximum depth of cut0.2360
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle25.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1969
Thickness range0.1850 to 0.2000
Width0.5787
