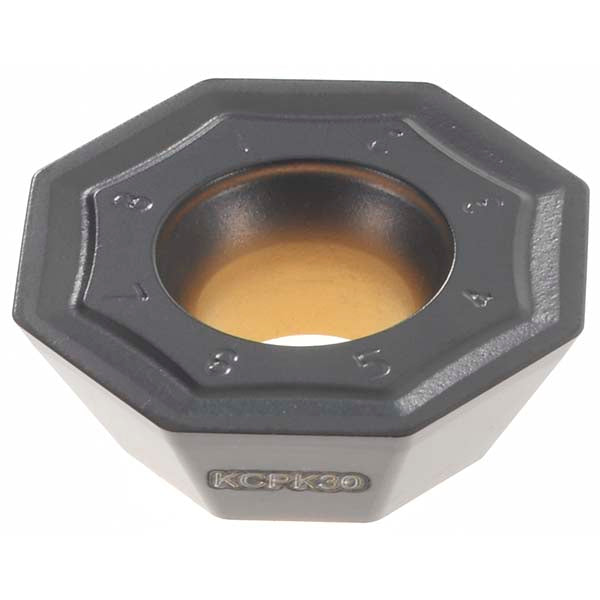

OFKT06L5AFENGB Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2455819

Kennametal

OFKT06L5AFENGB Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2455819

MFR# 2455819ISO/ANSI# OFKT06L5AFENGBCat# OFKT06L5AFENGBSeries OFKT

$32.13List $39.22 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 2455819 is a OFKT06L5AFENGB solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeOFKT53AFEN4GB
Chip breakerGB
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityKSOM
Cutting edge styleHoned
Hole diameter0.2165
Included angle degree135
Inscribed circle0.5787
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size5
Insert size code53
Insert styleOFKT
Iso codeOFKT06L5AFENGB
Length0.5787
Length range0.5000 to 0.6000
Manufacturers catalog numberOFKT06L5AFENGB
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Maximum depth of cut0.2360
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle25.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1969
Thickness range0.1850 to 0.2000
Width0.5787
