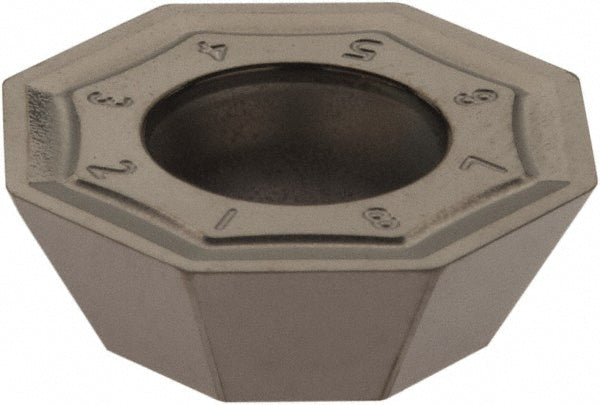

OFKT06L5AFFNLNJ Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 2458833

Kennametal

OFKT06L5AFFNLNJ Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 2458833

MFR# 2458833ISO/ANSI# OFKT06L5AFFNLNJCat# OFKT06L5AFFNLNJSeries OFKT

$34.11List $41.64 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeKC410M
MaterialSolid Carbide
CoatingTiB2

Description

The Kennametal 2458833 is a OFKT06L5AFFNLNJ solid carbide indexable insert, grade KC410M, TiB2 coated. Suited for non-ferrous metal.

Specifications

Ansi codeOFKT53AFFN4LNJ
Chip breakerLN
Coating finishTiB2
Coating processPVD
Corner radius in1/32
Cutter series compatibilityKSOM
Cutting edge styleSharp
Hole diameter0.2165
Included angle degree135
Inscribed circle0.5787
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size5
Insert size code53
Insert styleOFKT
Iso codeOFKT06L5AFFNLNJ
Length0.5787
Length range0.5000 to 0.6000
Manufacturers catalog numberOFKT06L5AFFNLNJ
Manufacturer gradeKC410M
Material applicationNon-Ferrous Metal
Multi use toolYes
Number of cutting edges8
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle0
Relief angle25.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1969
Thickness range0.1850 to 0.2000
Width0.5787
