Kennametal

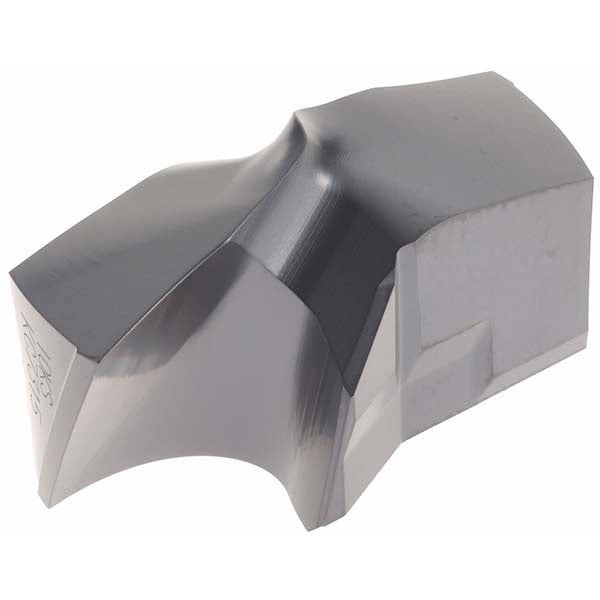

Carbide Insert, Grade KC7315, TiAlN - Kennametal 2499795
MFR# 2499795Series KSEM
$217.64List $257.49
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKC7315
CoatingTiAlN
Description
The Kennametal 2499795 is a carbide indexable insert, grade KC7315, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter1.0630
DrillingStackedPlates
Drill point angle140
Flute length (mm)13.00
Flute typeHelical
Functional length0.5315
Height in17/32
Included angle degree140
Insert geometryHPG
Insert holding methodClamp
Insert seat size6
Iso numberKSEM2700HPGM
Manufacturer gradeKC7315
Material gradeFine Grain
Number of flutes2
Overall length projection0.5315
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Spiral typeRegular Spiral
StyleKSEM
ThroughcoolantMQL(MinimumQuantityLubricant):Drilling; Drilling-ThroughCoolant
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
