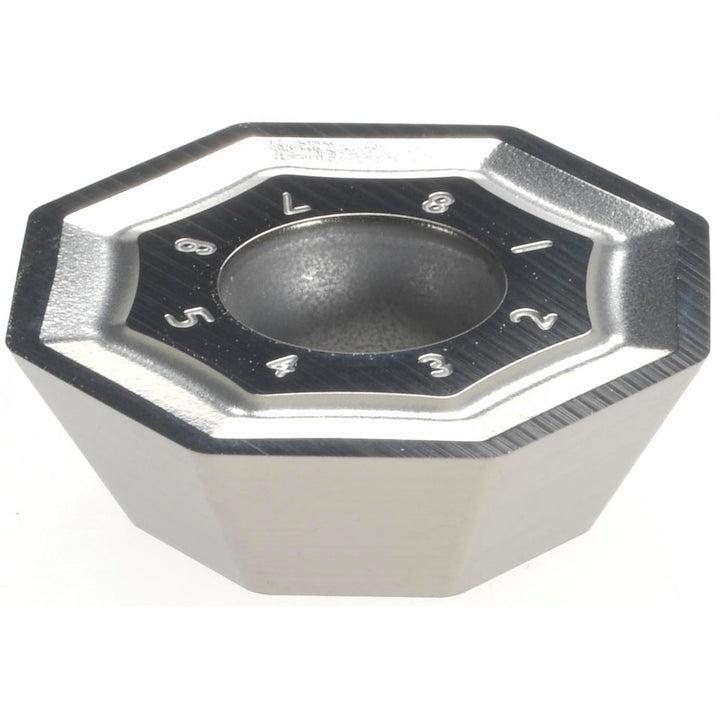

OFKT07L6AFFNLNJ Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 2499837

Kennametal

OFKT07L6AFFNLNJ Solid Carbide Insert, Grade KC410M, TiB2 - Kennametal 2499837

MFR# 2499837ISO/ANSI# OFKT07L6AFFNLNJCat# OFKT07L6AFFNLNJSeries OFKT

$36.14List $44.11 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeKC410M
MaterialSolid Carbide
CoatingTiB2

Description

The Kennametal 2499837 is a OFKT07L6AFFNLNJ solid carbide indexable insert, grade KC410M, TiB2 coated. Suited for non-ferrous metal.

Specifications

Ansi codeOFKT64AFFN6LNJ
Chip breakerLN
Coating finishTiB2
Coating processPVD
Corner radius in3/64
Cutter series compatibilityKSOM
Cutting edge styleSharp
Hole diameter0.2165
Included angle degree135
Inscribed circle0.7360
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size6
Insert size code64
Insert styleOFKT
Iso codeOFKT07L6AFFNLNJ
Length0.7360
Length range0.7000 to 0.9000
Manufacturers catalog numberOFKT07L6AFFNLNJ
Manufacturer gradeKC410M
Material applicationNon-Ferrous Metal
Multi use toolYes
Number of cutting edges8
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle0
Relief angle25.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.7360
