Kennametal

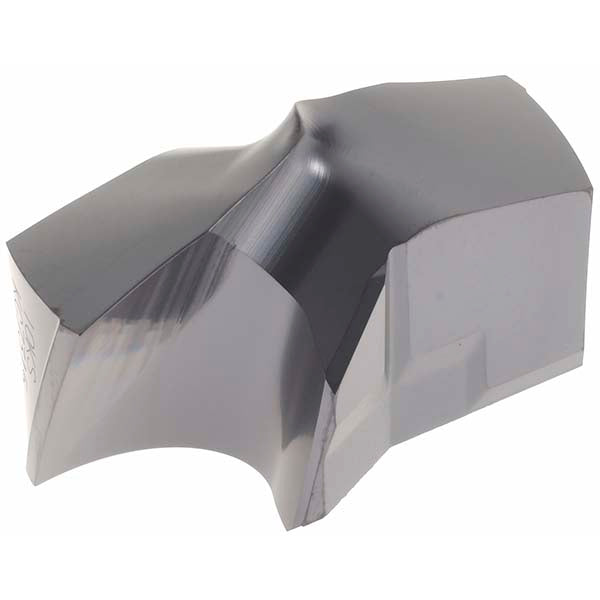

Carbide Insert, Grade KC7315, TiAlN - Kennametal 2499869
MFR# 2499869Series KSEM
$228.88List $279.38
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKC7315
CoatingTiAlN
Description
The Kennametal 2499869 is a carbide indexable insert, grade KC7315, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter in1-1/32
DrillingStackedPlates
Drill point angle140
Flute length (mm)13.00
Flute typeHelical
Functional length0.5155
Height in33/64
Included angle degree140
Insert geometryHPG
Insert holding methodClamp
Insert seat size6
Iso numberKSEM1031HPG
Manufacturer gradeKC7315
Material gradeFine Grain
Number of flutes2
Overall length projection0.5155
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Spiral typeRegular Spiral
StyleKSEM
ThroughcoolantMQL(MinimumQuantityLubricant):Drilling; Drilling-ThroughCoolant
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
