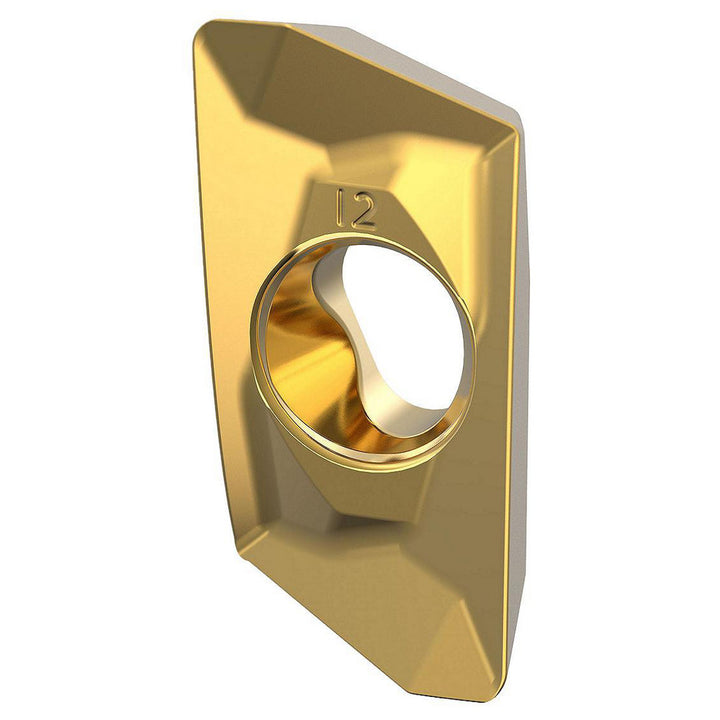

EDPT180516PDSRGD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2509388
MFR# 2509388ISO/ANSI# EDPT180516PDSRGDCat# EDPT180516PDSRGDSeries EDPT
$28.45List $34.73
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 2509388 is a EDPT180516PDSRGD solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeEP1816S
Chip breakerGD
Coating finishTiN
Coating processCVD
Corner radius in1/16
Cutter series compatibilityMill 1-18
Cutting edge styleChamfered; Honed
Included angle degree70
Inscribed circle0.4290
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code1816
Insert styleEDPT
Iso codeEDPT180516PDSRGD
Length0.8580
Length range0.7000 to 0.9000
Manufacturers catalog numberEDPT180516PDSRGD
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2165
Thickness range0.2000 to 0.2200
Width0.4283
