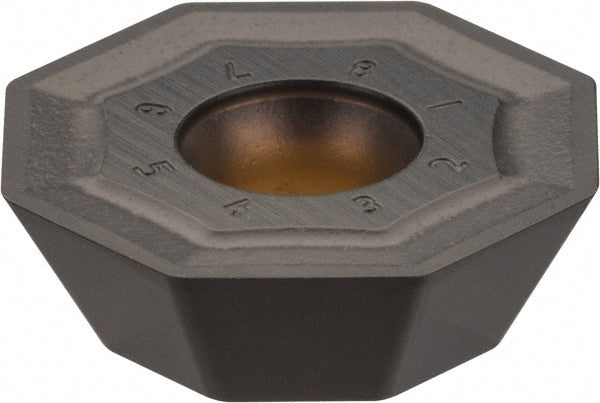

OFKT07L6AFENLB Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2545095

Kennametal

OFKT07L6AFENLB Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2545095

MFR# 2545095ISO/ANSI# OFKT07L6AFENLBCat# OFKT07L6AFENLBSeries OFKT

$36.40List $44.43 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 2545095 is a OFKT07L6AFENLB solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeOFKT64AFEN6LB
Chip breakerLB
Coating finishTiN
Coating processCVD
Corner radius in3/64
Cutter series compatibilityKSOM
Cutting edge styleHoned
Hole diameter0.2165
Included angle degree135
Inscribed circle0.7360
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size6
Insert size code64
Insert styleOFKT
Iso codeOFKT07L6AFENLB
Length0.7360
Length range0.7000 to 0.9000
Manufacturers catalog numberOFKT07L6AFENLB
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Maximum depth of cut0.2950
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle25.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2362
Thickness range0.2350 to 0.2500
Width0.7360
