Kennametal

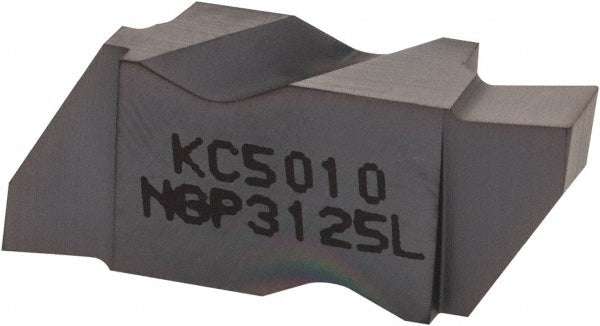

Carbide Insert, Grade KC5010, TiAlN - Kennametal 2598817
MFR# 2598817Series Top Notch
$37.40List $45.65
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 2598817 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting width0.1252
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert materialCarbide
Insert size3125
Insert styleNGP
Lead angle3
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolNo
RakePositive
Rake angle5
