Kennametal

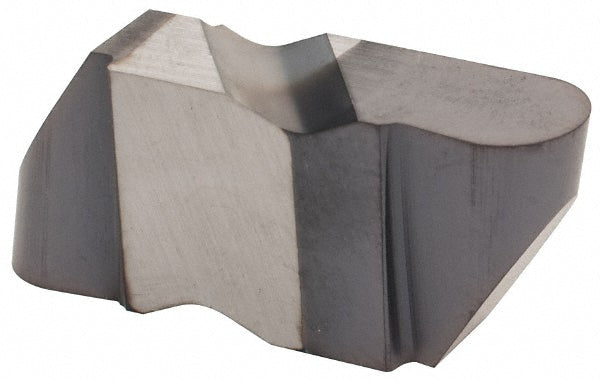

Carbide Insert, Grade KC5010, TiAlN - Kennametal 2599505
MFR# 2599505Series Top Notch
$47.27List $57.70
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 2599505 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.1252
Cutting width0.2500
Full radiusYes
Included angle degree55
Insert handRight Hand
Insert materialCarbide
Insert seat size4
Insert size4125
Insert styleNR
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Multi use toolNo
RakeNeutral
