Kennametal

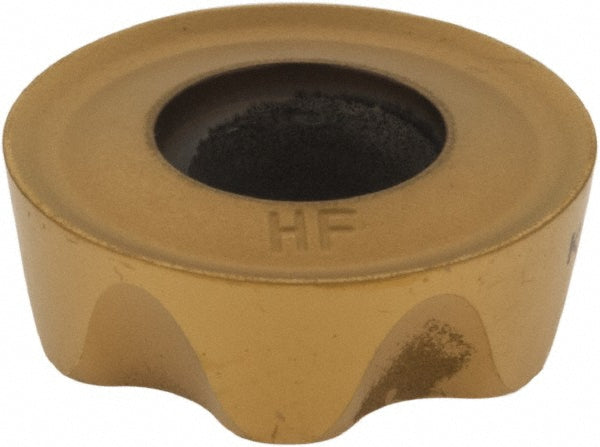

RCGT190600SHF Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 2606186
MFR# 2606186ISO/ANSI# RCGT190600SHFCat# RCGT190600SHFSeries RCGT
$43.92List $53.62
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeRound
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 2606186 is a RCGT190600SHF solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeRCGT64SHF
Chip breakerHF
Coating finishTiAlN
Coating processPVD
Cutter series compatibilityKSRM
Cutting edge styleChamfered; Honed
Hole diameter0.2559
Included angle degree360
Inscribed circle in3/4
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size6
Insert size code64
Insert styleRCGT
Iso codeRCGT190600SHF
Length in3/4
Length range0.7000 to 0.9000
Manufacturers catalog numberRCGT190600SHF
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle25
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width in3/4
