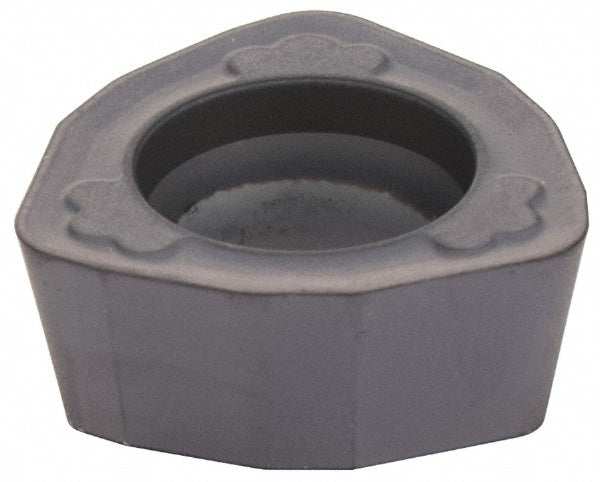

WPMW06X415ZZERGP Solid Carbide Insert, Grade KC522M, TiAlN - Kennametal 2616309

Kennametal

WPMW06X415ZZERGP Solid Carbide Insert, Grade KC522M, TiAlN - Kennametal 2616309

MFR# 2616309ISO/ANSI# WPMW06X415ZZERGPCat# WPMW06X415ZZERGPSeries WPMW

$36.54List $44.60 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeKC522M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 2616309 is a WPMW06X415ZZERGP solid carbide indexable insert, grade KC522M, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Chip breakerGP
Coating finishTiAlN
Coating processPVD
Corner radius0.0591
Hole diameter0.1732
Included angle degree60
Inscribed circle0.5067
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size41
Insert size code415
Insert styleWPMW
Iso codeWPMW06X415ZZERGP
Length0.4154
Length range0.4000 to 0.4500
Manufacturers catalog numberWPMW06X415ZZERGP
Manufacturer gradeKC522M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeC1
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Rake angle30
Relief angle11.00
Single or double sided insertSingle
Thickness0.1654
Thickness range0.1500 to 0.1750
