Kennametal

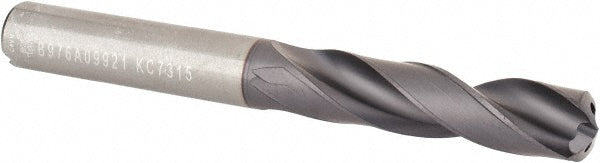

25/64" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 2649375
MFR# 2649375Series B976
$152.66List $195.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size25/64
Flutes2
CoatingTiAlN
Description
The Kennametal 2649375 is a 25/64" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for cast iron, steel. Series B976.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.006 to +0.021 mm
Drill bit gradeHigh Performance
Drill bit size in25/64
Drill bit size range0.3500 to 0.4000
Drill point angle140
Drill point length0.0670
Flute length1.8504
Flute typeRegular Spiral
Maximum drilling depth1.3780
Number of flutes2
Overall length3.5039
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.3937
Shank length1.5748
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
