Kennametal

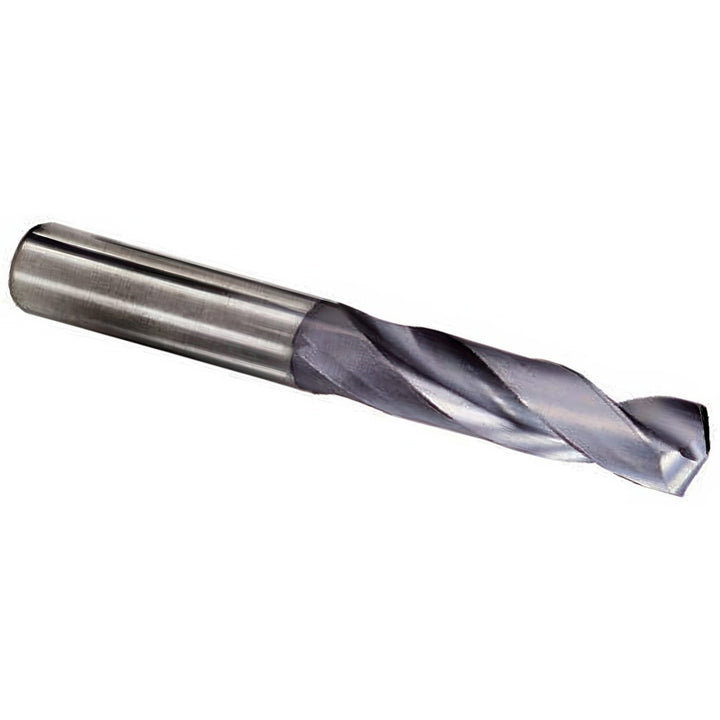

15/32" Solid Carbide Drill Bit, TiAlN, 132° point - Kennametal 2658410
MFR# 2658410Series B978
$441.56List $566.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/32
CoatingTiAlN
Description
The Kennametal 2658410 is a 15/32" Solid Carbide drill bit with a TiAlN finish, 132° point. Series B978.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.007 to +0.025 mm
Drill bit gradeHigh Performance
Drill bit size in15/32
Drill point angle degrees132
Drill point length0.1000
Flute length3.7008
Flute typeSpiral
Material applicationCast Iron; Steel
Maximum drilling depth3.1100
Overall length5-2/4
Point typeStandard
Shank diameter0.4724
Shank length1.7717
Shank typeStraight-Cylindrical
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
